Flame Scanner Sensor

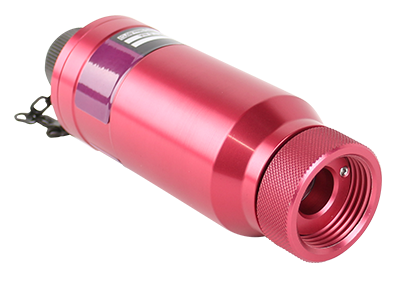

Standard

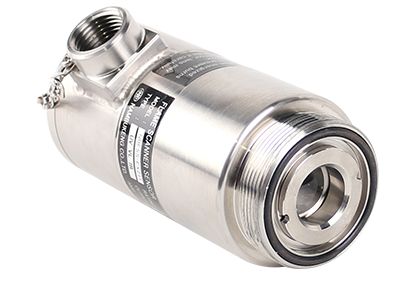

Explosion Proof
Specifications
| Standard | Explosion Proof | |
|---|---|---|
| Type & Model | NBFSS-2(3)**-U (Ultraviolet) NBFSS-2(3)**-I (Infrared) NBFSS-2(3)**-UI (UV & IR) NBFSS-2(3)**-V (Visible Light) |
NBFSS-EX2(3)**-U (Ultraviolet) NBFSS-EX2(3)**-I (Infrared) NBFSS-EX2(3)**-UI (UV & IR) NBFSS-EX2(3)**-V (Visible Light) |
| Mounting | 1"PTF | 1"PTF with Coupling |
| Material | AL6061 with Anodizing | Stainless Steel |
| Electrical Connection | Plug Type 5-Pin MS Connector | Thread PF1/2" or NPT1/2" |
| Ingress Protection | NEMA4X, IP66 | Ex d IIC T6, IP66 |
| Dimension | 126mm Long by 49 Diameter | 151mm Long by 59 Diameter |
| Shipping Weight | 0.6 kg | 1.2 kg |
| Spectral Range | Ultraviolet, 190~550nm Infrared, 800~1700nm UV & IR, 190~1000nm filtered 400~700nm Visible Light, 330~720nm |
|
| Power / Output | 12VDC supplied by Amplifier / 2~6mA | |
| Ambient Temperature | -20 ~ 75℃ (Max. 80℃) | |
| Humidity | 0~95% relative humidity, non-condensing | |
| Cooling(Purge) Air Consumption | 5SCFM(8.5Nm3/h) at 6"W.C(0.015bar) above windbox pressure | |

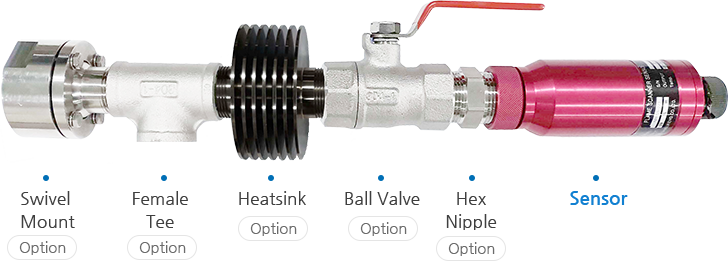

Accessories
Swivel Mount
- Sensor Connection PT1", Stainless Steel
(Specify Mounting size as request)
Cable
- Socket Type 5-Pin MS Connector with Shielded Cable 1.5mm2x4C and Adaptor for 1/2" Flexible conduit (Specify Cable Length)
Installation Materials
- Female Tee PT1"xPT1/2", Cast Iron (Stainless Steel by option)
- Hex Nipple PT1", Cast Iron (Stainless Steel by option)
- Ball Valve PT1", Cast Iron (Stainless Steel by option)
- Cable Gland PF1/2" (Explosion Proof only)
- Heatsink or Thermal Isolator
Outline & Dimension

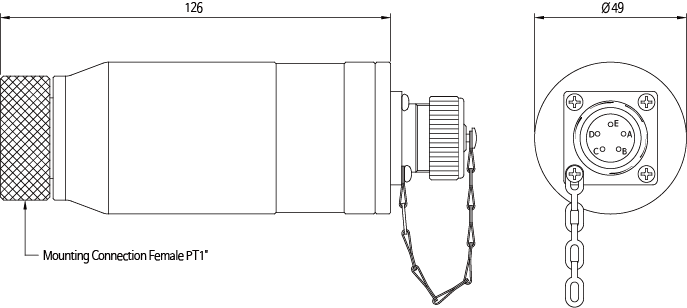

Standard Housing

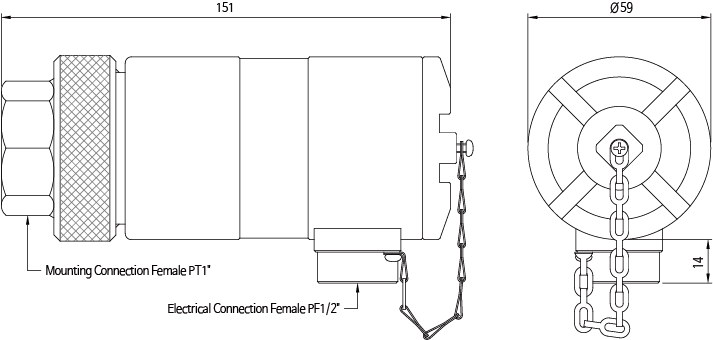

Explosion Proof Housing
